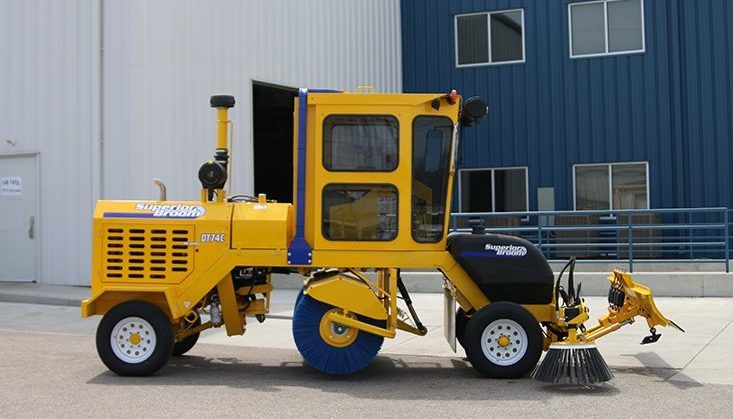

2024 Superior Broom DT74F / DT74C

The Superior Broom has many features not found on any other Side Cast Sweepers, including low noise level in the cab, rear leaf spring suspension, and touch pad control panel for the remote mounted integrated hydraulic manifold that keeps the hydraulic heat and noise outside of the cab.

Print Brochure

Body
Power Steering	Orbital, hydraulic
Suspension	Rear axle leaf spring

Operational
Sweeping Path	96 in.
Number of Rear Axles	(1) heavy-duty semi-float differential 3/4 ton
Wheels	(4) 15 x 6 in., 6-bolt, steel spoke
Tires	ST225/75R15, radial, load range D

Engine & Drivetrain
Engine Make	FPT, Caterpillar
Engine Model	Turbo charged, Tier 4 Final
Engine Type	208 cid
Horsepower	74hp
Fuel Type	Diesel
Fuel Tank Capacity	30 gal.
Transmission	Infinitely variable hydrostatic pump and motor driving a differential rear axle through a 2-speed gearbox
Travel Speed	Low Range: 0 - 12 mph High Range: 0 - 34 mph

Hydraulics
Hydraulic System	Load compensated piston pump 28 gpm with 2,500 PSI operating pressure 10 micron high pressure suction filter

Options
2-door cab
Enclosed cab with wiper
Open cab (Export only)
Emergency brake safety system
Hydraulic temperature gauge
Brush side shift
Custom brush options
Reversing brush option
Custom tire options
Spare tire
Tilt and telescoping steering column
Block heater
Vandal locks
AM / FM / CD stereo
Light options: strobe light, reversing lights, side- or rear-mounted work lights
HEPA cab filter
Deluxe mid-back suspension seat
Rear window wiper and washer
Rotating beacon
Audible engine alarm
Back-up alarm
Back-up camera
7-1/2 ft. scraper blade
Curb and gutter brush
Enginaire pre-cleaner
Rotary pre-cleaner
Extension air stack
Air conditioning
Pressurized air conditioning - 35,000 BTU
Heater and defroster fan
Front and rear flasher lights
Head lights
Brake and tail lights
Tow bar
West coast mirrors
Front fenders

Features
12-gauge steel, 140 degree full brush length with end plate covers and full length rock deflector
4-wheel hydraulic with dual master cylinder and mechanical parking brake
8 ft. poly quick change tube brush
45 degrees (left and / or right) - swing movement on brush
8 ft. all welded tubular construction brush core
Direct drive motor enclosed in core (200 rpm)
Heavy-duty vertically mounted radiator and oil cooler with 8,000 cfm suction fan
Broom lift, adjustable down pressure and swing right to left through joystick movement
Circle swing frame mounted on 10 heavy-duty sealed, tapered bearings with debris guards
Dual transmission foot controls
Certified roll over protection (ROPS) structure meets and exceeds all federal standards
Padded suspension seat
Hour meter
Engine monitoring display - dash mounted
Dual element air cleaner and pre-cleaner
12-volt ignition system
Dual transmission foot controls
950 CCA battery
Tachometer
Volt meter
Water temperature
Electronic joystick control for brush on-off with trigger for float, push buttons for broom on-off and speed control
Safety engine shutdown system
170 gal. water system
3/4 ton rear drive axle
Brush shield rubber rock deflector
Welded 6 in. channel with gussets at all stress points
