Body
Power Steering Orbital, hydraulic
Suspension Spring
Operational
Sweeping Path 96 in.
Number of Rear Axles (1) heavy-duty semi-float differential
Wheels (4) 15 x 6 in., 6-bolt, steel spoke
Tires (4) 57235/75R15, radial, load range C
Engine & Drivetrain
Engine Make Cummins
Engine Model B3.3T
Engine Type 199 ci
Horsepower 74 hp
Fuel Type Diesel
Fuel Tank Capacity 41 gal.
Transmission Infinitely variable hydrostatic pump and motor driving a differential rear axle through a 2-speed gearbox
Travel Speed Low Range: 0-12 mph
High Range: 0-34 mph
Hydraulics
Hydraulic System Load compensated pump
28 gpm with 3,000 PSI operating pressure
10 micron high pressure suction filter
Features
12-gauge steel, 140 degree full brush length with end plate covers and full length rock deflector
4-wheel hydraulic with dual master cylinder and mechanical parking brake
8 ft. poly quick change tube brush
45 degrees (left and / or right) - swing movement on brush
8 ft. all welded tubular construction
Certified roll over protection (ROPS) structure meets and exceeds all federal standards
Direct drive motor enclosed in core (200 rpm)
Padded suspension seat
Electronic joystick control for brush on-off with trigger for float, push buttons for broom on-off and speed control
Heavy-duty vertically mounted radiator and oil cooler with 8,000 cfm suction fan
Hour meter
Oil pressure
Engine monitoring display - dash mounted
Dual element air cleaner and pre-cleaner
12-volt ignition system
Dual transmission foot controls
950 CCA battery
Tachometer
Volt meter
Water temperature
Electronic brush speed control
Safety engine shutdown system
170 gal. water system
3/4 ton rear drive axle
Brush shield rubber rock deflector
Enclosed cab with wiper
Broom lift, adjustable down pressure and swing right to left through joystick movement
Circle swing frame mounted on 10 heavy-duty sealed, tapered bearings with debris guards
Welded 6 in. channel with gussets at all stress points
Options
2-door cab
Open cab (Export only)
Emergency brake safety system
Hydraulic temperature gauge
Dual transmission hand controls
Brush side shift
Custom brush options
Reversing brush option
Custom tire options
Spare tire
Tilt and telescoping steering column
Block heater
Vandal locks
AM / FM / CD stereo
Light options: strobe light, reversing lights, side- or rear-mounted work lights
Deluxe mid-back suspension seat
Rear window wiper and washer
Rotating beacon
Audible engine alarm
Back-up alarm
Back-up camera
7-1/2 ft. scraper blade
Curb and gutter brush
Enginaire pre-cleaner
Rotary pre-cleaner
Extension air stack
Air conditioning
Pressurized air conditioning - 35,000 BTU
Heater and defroster fan
Light group
Front and rear flasher lights
Head lights
Brake and tail lights
Tow bar
West coast mirrors
Front fenders

Long Product Title

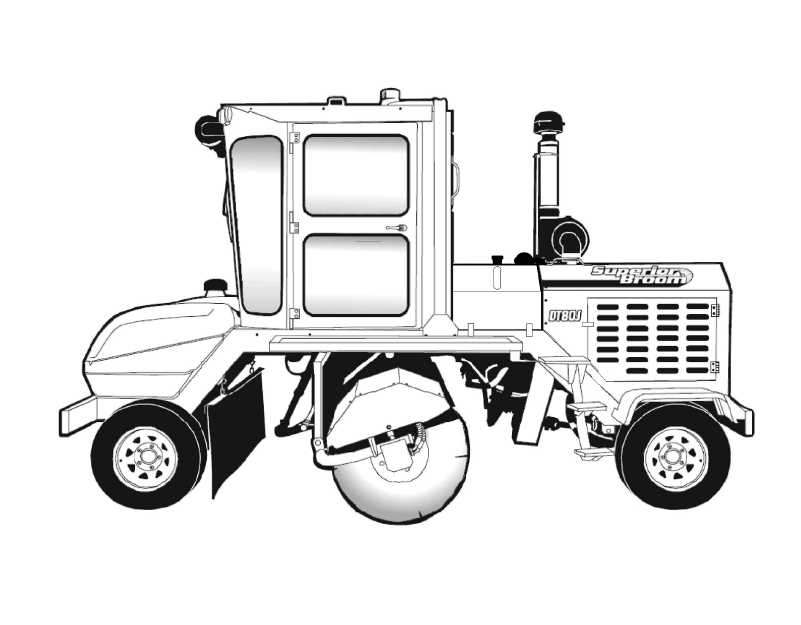

2016 Superior Broom DT80CT

Header Short Description

The Superior Broom has many features not found on any other Side Cast Sweepers, including low noise level in the cab, rear leaf spring suspension, and touch pad control panel for the remote mounted integrated hydraulic manifold that keeps the hydraulic heat and noise outside of the cab.
